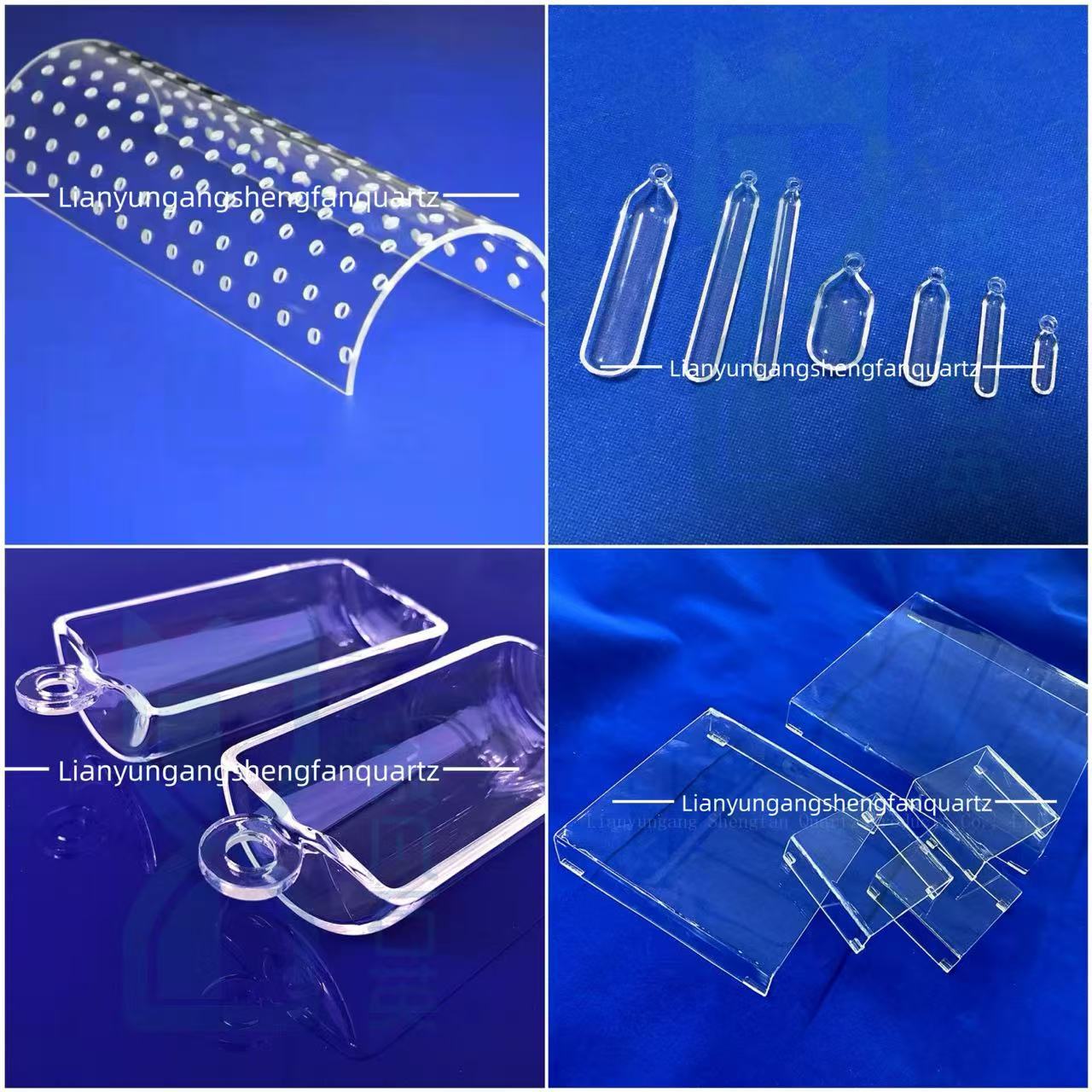

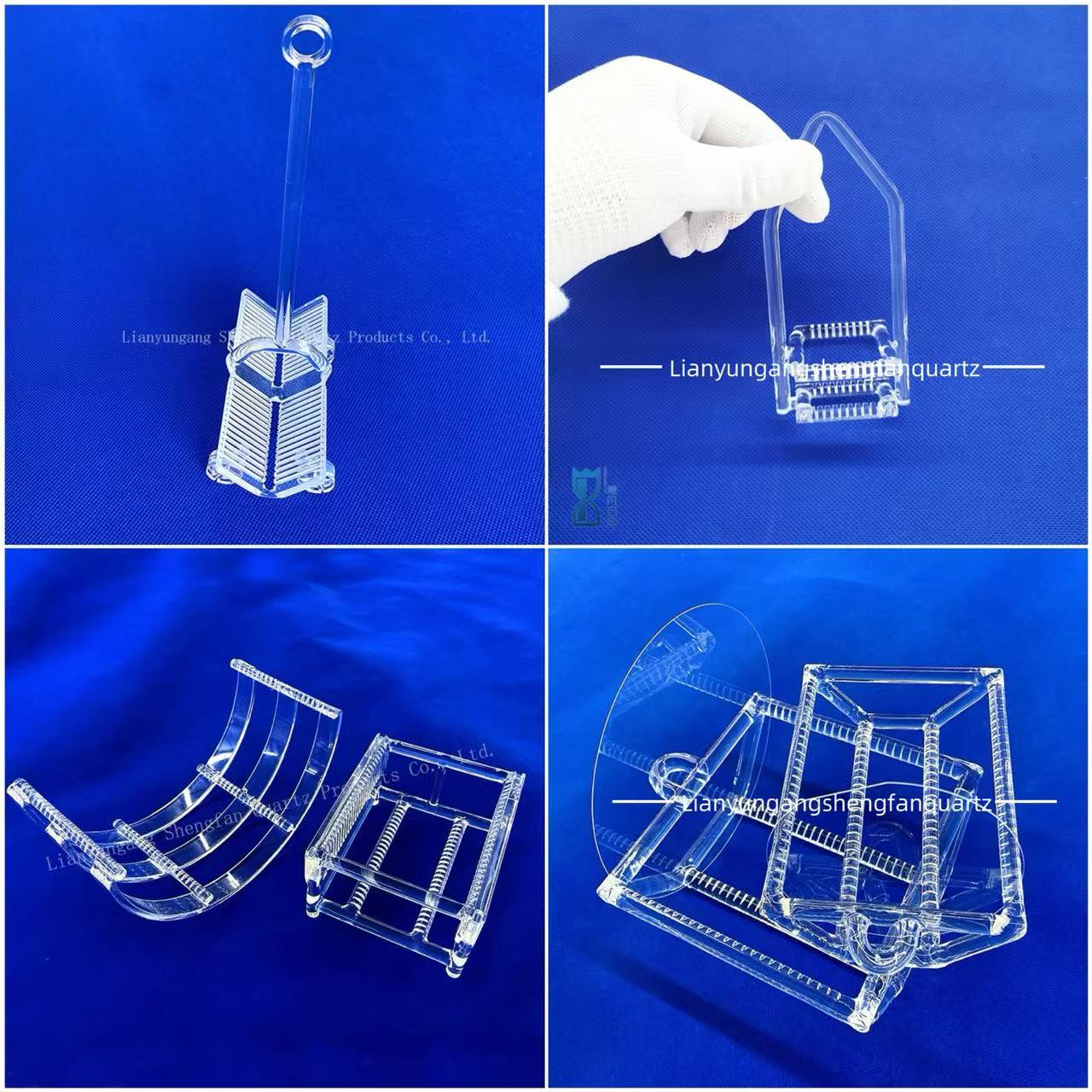

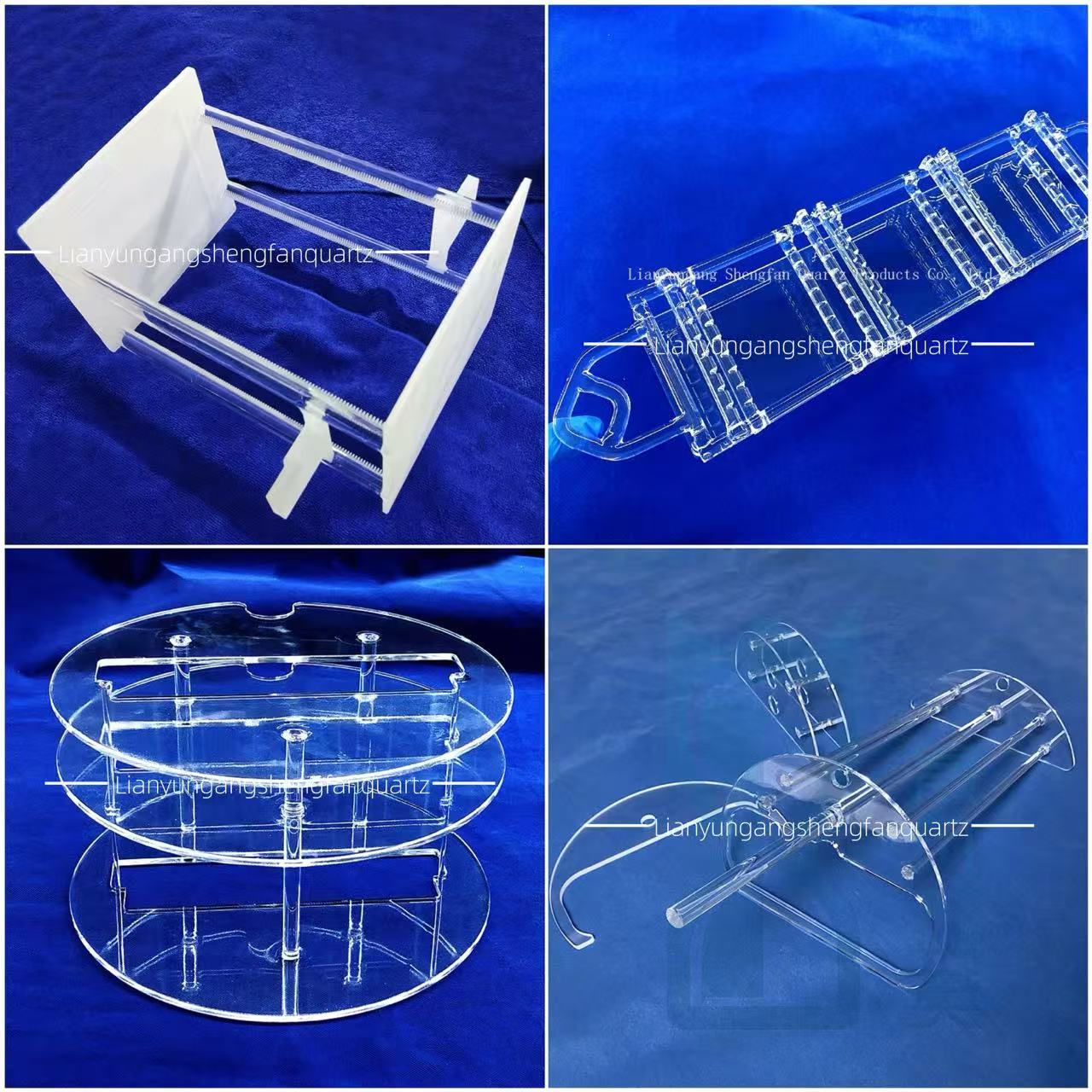

Factory price High purity fused silica quartz glass boat wafer carrier for furnace chemical laboratory glassware
Main Appilication: light, sources, semiconductor, optical, communications, military, buildingmaterials, chemical, mechanical, electrical, environmental protection and other fields.
Material properties of transparent quartz glass:
High Durability
High heat resistance
High Corrosion Resistance
Low Thermal Expansion Coefficient
CORROSION RESISTANT
In addition to hydrofluoric acid, quartz glass has no chemical reaction withother acid. Its acid resistance is 30 times that of Ceramic.150 times that of stainless steel Especially the chemical stability at low temperature.
Which can not be compared with any other engineering materials.
GOOD THERMAL STABILITY
The thermal contraction coefficient of quartz glass.
Can suffer severe temperature changes.
The quartz glass heated to 1100℃
also will not burst into cold water.
GOOD PERVIOUS TO LIGHT
Quartz glass has good transmittance in all spectral bands from purple to red.
The visible light transmittance is above 93% specially in the ultraviolet spectral region.
And the maximum transmittance is over 80%.
GOOD ELECTRICAL INSULATION
The resistance of quartz glass is 10,000 times that of ordinary and has good electrical performance even at low temperature
Application of standard clear quartz tube
halogen lamp, mercury lamp, single end lamp,automobile lamp, stage lamp, The thermoelectric boiler, The photocopier lamp, Water treatment lamp casing, quartz ware and pipe.
| Shengfan Quartz plate characteristic |
| SIO2 |
99.9% |
| Density |
2.2(g/cm³) |
| Degree of hardness moh’ scale |
6.6 |
| Melting point |
1732℃ |
| Working temperature |
1100℃ |
| Max temperature can reach in a short time |
1450℃ |
| Visible light transmittance |
Above 93% |
| UV spectral region transmittance |
80% |
| Annealing point |
1180℃ |
| Softening point |
1630℃ |
| Strain point |
1100℃ |
